Disc Coreless Permanent Magnet Generator
Technical Data(Example)
| Model | GDG-1KW-180 |
| Rated Power | 1KW |
| Rated Rotate Speed | 180 RPM |
| Option Rated Voltage | 48V-400Vac |
| Efficiency | >89% |
| Wending Method | Y |
| Insulating Resistance | 100Mohm Min(500V DC) |
| Leakage Level | <5 ma |
| Start Torque | <0.3N/M |
| Rated Torque | 56N/M |
| Phase Type | 3 Phase |
| Structure | Outer rotor |
| Stator | Coreless wire coil |
| Rotor | Rare Earth Permanent Magnet |
| Generator Shell Diameter | 380mm |
| Generator Shell Length | 241mm |
| Weight | 32kg |
| Shaft drameter | 50mm |
| Generator shell material | Aluminum alloy |
| Shaft material | Carbon steel |
| Bearing | NSK Deep groove ball bearing |
Drawing Sample and Pictures
Product Advantages
This Coreless Permanent Magnet always being used in vertical axis wind turbine, and other generator system which requests very low start torque and low rated rotate speed, low start wind speed, low weight and small size.
| 1 | Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <0.3N.M |
| 2 | Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight. |
| 3 | Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy. |
| 4 | Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor. |
| 5 | Gearless, direct drive, low RPM generator. |
| 6 | High standard, quality components for use in harsh and extreme environments for wind turbines |
| 7 | High efficiency and Low mechanical resistance energy loss |
| 8 | Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure. |

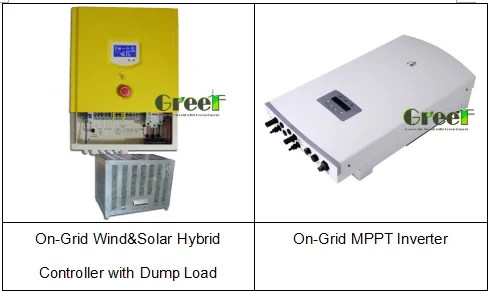

We can provide the complete generator system including Controller and Inverter:
On-grid Generator System
Off-grid Generator System
We are Top 3 suppliers of generators products on alibaba.com
--- Bureau Audited Supplier.
--- Products quality and on time delivery are guaranteed by alibaba.com.
--- 10 years’ experience engineer & QC team
--- 7days*24 hours on time service
--- Focus on after-sale service.
--- One stop customized system solution
--- Trade experience with more than 60 countries.
--- CE ,TUV, UL , RoHS, SAA certificated
--- OEM ,ODM are accepted
Generators are free 3 years warranty, All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
Other models you may interested in:
GDG-500W-200rpm / GDG-500W-400RPM
GDG-1KW-180RPM / GDG-1KW-150RPM
GDG-2KW-180RPM / GDG-2KW-120RPM
GDG-3KW-180RPM / GDG-3KW-150RPM
GDG-5KW-100RPM / GDG-5KW-150RPM
GDG-10KW-100RPM / GDG-10KW-150RPM
If you have other requirements, please feel free to contact us directly!
